RENOSEM

1. Cassette type 멸균제

사용하기 쉬운 Single-use cassette 타입
사용자의 편리와 안전을 생각한 Cassette 타입의 멸균제

2. 편리한 사용환경

사용이 편리한 칼라 wide touch screen
진행시간, 온도, 아볅 등 공정 정보 확인 가능

3. 효율적인 Chamber 디자인

공간활용도가 높은 사각형의 Chamber

4. 데이터 저장 시스템

5. 내장 프린터

6. 이동 시 용이한 바퀴

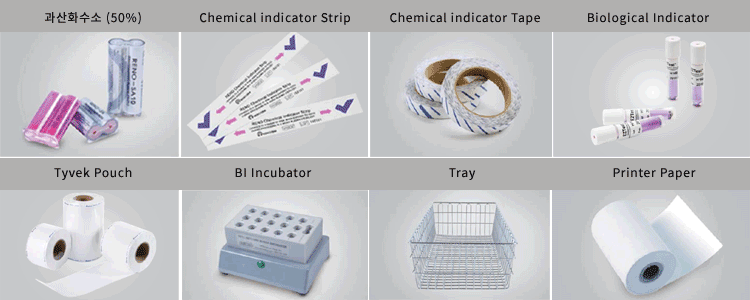

소모품

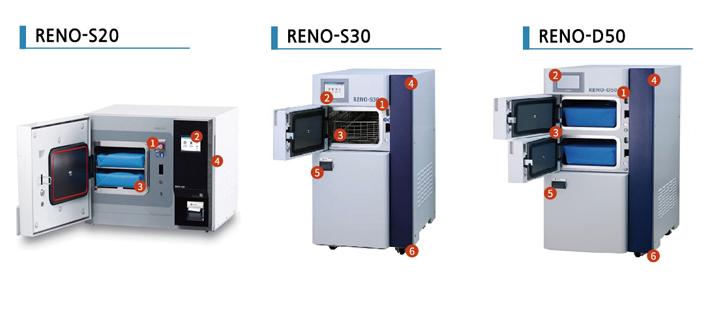

Specification

Model Name	RENO-S20	RENO-S30	RENO-D50
Eco Cycle Time	About 21min	About 27min	About 27min (Single Mode)
Advanced Cycle	About 38min	About 45min	About 45min
Processing Temperature	Below 55℃	Below 55℃	Bolew 55℃
Dimensions(H)x(W)x(D)	470x655x640	1,010x570x830	1,280x570x830
Weight	116kg	190kg	290kg
Chamber Configuration	Rectangular	Rectangular	Rectangular(double chamber)
Chamber total volume (H)x(W)x(D)(mm)	18L,170x260x410	34L,185x300x610	30L,185x300x548 30L,185x300x548
Chmaber Shelf	two-tired shelf(option)	-	-
Chmaber Material	stainless steel	stainless steel	stainless steel
Door type	single type	single type	two door
sterilant	hydrigen peroxide	hydrigen peroxide	hydrigen peroxide
electricity	220v~, 단상, 60Hz	220v~, 단상, 60Hz	220v~, 단상, 60Hz
power consumption	1.5kva	2.5kva	2.5kva
Program Control	micro processor	micro processor	micro processor
self-test mode	automatic	automatic	automatic
Printer Outputs	built-in thermal printer	built-in thermal printer	built-in thermal printer
Data storage	memory card	memory card	memory card
display screen	color-coded touch screen	color-coded touch screen	color-coded touch screen
display alarm	audible/visable alarm	audible/visable alarm	audible/visable alarm
Mobile wheels or cart	cart-mounted with 4 locking wheels(option)	built-in 4 locking wheels	built-in 4 locking wheels
Hefa filter	99.97% efficiency at 0.3 micron(0.3x10)	99.97% efficiency at 0.3 micron(0.3x10)	99.97% efficiency at 0.3 micron(0.3x10)
Regulatory approvals	CE/ISO13485/ISO9001	CE/ISO13485/ISO9001	CE/ISO13485/ISO9001
